HEAVY-DUTY GEARING - Fitted with heat treated and ground gearing.
LOAD BRAKE - Mechanical load brake for extra safety.
HARDENED CHAINS - All chains are manufactured from hardened alloy material.
SAFETY HOOKS - Load hooks feature safety latches.
REDUCED SIZE GEAR HOUSING - Compact gear housing allows use where headroom is limited.

Capacity:
3000kg

Chain Falls:
2

Head Room:
470mm

Load Chain Diameter:
Ø8mm

Maximum Hook Capacity Ø:
38mm

Nett Weight:
21.5kg

Pulling Effort:
404N

Safe Working Load:
3000kg

Standard Lift:
3m

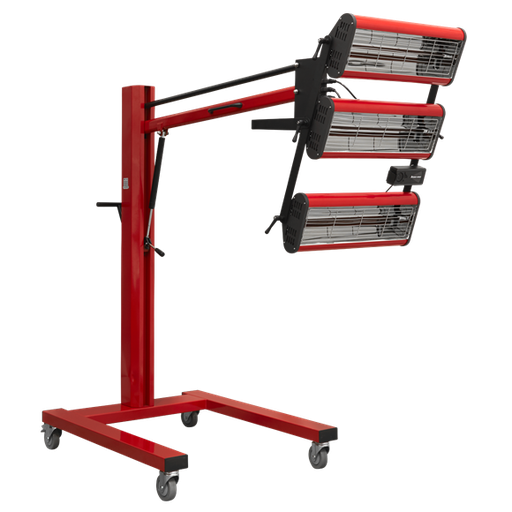

DISTANCE SENSOR - Shows optimal distance from the workpiece.
MEMORY FUCTION - Stores up to four frequently used settings.
SHORT WAVE - Lamps emit short wave infrared heat ideal for optimised drying of water based paints.
MANOEUVRABLE LAMPS - This flexible system allows each heater to be adjusted and locked in position around the contours of the vehicle, ensuring maximum area coverage.
TIMER - In-built timer turns lamps off after a set time.
HEIGHT ADJUSTABLE - Height adjustment is made using the locking gas strut, offering near weightless movement of the support arm.
DIGITAL CONTROLS - Ergonomic push-buttons designed to be easier to use than analogue controls.
SWIVEL CASTORS - Fitted with four castors, two with brakes for maximum manoeuvrability and safe positioning.

Element Power:
3150W

Nett Weight:
39kg

Number of Elements:
3 x 1050W

Reflector Size:
530 x 140mm

Supply:
230V

VERSATILE LIFTING RANGE - Minimum saddle height 130mm, maximum saddle height 520mm.
HEAVY-DUTY CASTORS AND EXTRA LARGE SADDLE DESIGN - Ease positioning under the vehicle.
PROTECTIVE JACK HANDLE SLEEVE - To help prevent accidental damage to car bodywork when pumping the handle.
FITTED WITH SAFETY OVERLOAD AND PUMP-THROUGH VALVE - Preventing the handle locking at maximum ram extension.

Capacity:

3 Tonne

Consumable Parts:
Replacement Rubber Jack Pad - JP19
Length:
659mm

Maximum Chassis Height:
172mm

Maximum Saddle Height:
520mm

Minimum Saddle Height:
130mm

Nett Weight:
35kg

For the professional bodyshop or valeting bay to accurately verify the thickness of paint and check for accident damage.
Uses magnetic induction to provide accurate and consistent readings to 0.1µm.
Suitable for steel and aluminium panels.
Easy to calibrate with test plates and precision standards.
USB Interface for downloading data to PC.
Powered by 2 x 1.5V batteries (supplied).

Accuracy:
±3%

Graduations:
0.1µm

Nett Weight:
0.71kg

PC Compatibility:
Windows 2000, XP, Vista, Win7

Range:
0-1250µm

Ideal for the showroom, bodyshop and valeting bay to accurately verify the thickness of paint and check for accident damage.
Uses magnetic induction to provide accurate and consistent readings to 0.1mm.
Suitable for iron, steel and aluminium with non-magnetic coatings including paint, enamel, plastic and epoxy.
Displays measurement in mm.
Graduations/Range: 0.1mm/0-2mm.
Powered by CR2032 3V battery (supplied).

Accuracy:
±2%

Graduations:
0.1mm

Nett Weight:
0.03kg

Range:
0-2mm

Compact and easy-to-use to raise a vehicle either manually or with an electric drill of 90Nm or more (do not use an impact wrench as this will damage the mechanism).
While raising, the lift can be stopped at any height before locking the vehicle level.
Once raised, it can be tilted forwards or backwards to allow greater access to underside of car (always use suitably rated axle stands before getting under a vehicle).
Three adjustable width settings (775/1130/1530mm) allows narrow chassis cars to be lifted, such as MGs and other small classic cars.
Even with modern wider cars, this style of lift allows easy-access to sills and edges of vehicle that some lifts would obscure.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Capacity:
1500kg

Lock Spacing:
N/A

Locking Positions:
3

Maximum Lift Height:
585mm

Nett Weight:
67kg

Overall Size (W x D x H):
1185 x 775 x 160mm (minimum)

PORTABLE - A transportable lifting system which makes total vehicle lifting, for maintenance or detailing, a much easier task.
LIGHTWEIGHT - Each Strut weighs less than 40kg, and is on wheels for easy positioning.
CONTROLLABLE - A simple up and down control unit, has a long lead, making it possible to observe the entire lift at all angles.
SAFETY LOCKS - Automatic safety lock bars, with dual locking positions.
LOW-PROFILE - A low clearance height of just 75mm, making it ideal for custom, sports and race vehicles.

Capacity:
2250kg

Lock Spacing:
237, 77, 48

Locking Positions:
311, 38, 436

Maximum Lift Height:
445mm

Nett Weight:
104.4kg

Overall Size (W x D x H):
Lowered/Extended: 1780/1555mm x 280mm x 74/445mm
